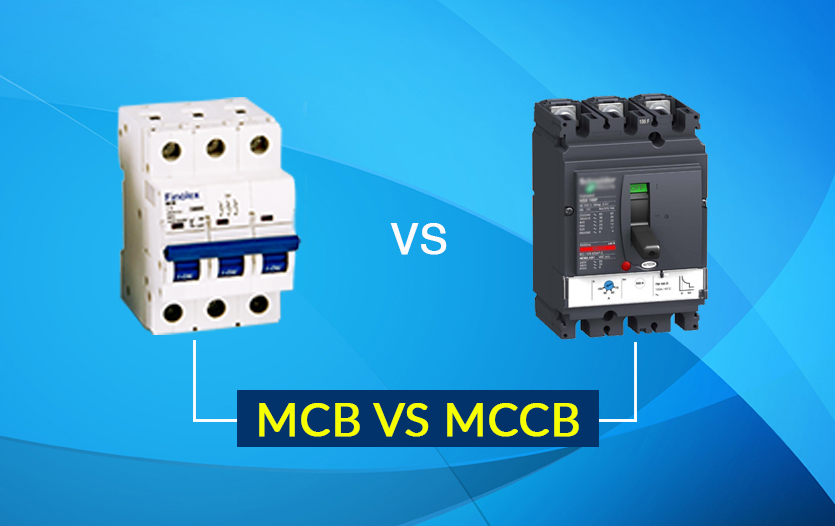

What You Should Know About MCCB, MCB, And HRC Fuse

MCCBs, or moulded case circuit breakers, are a type of circuit breaker used to prevent overload and short circuits in electrical systems.

What Are Molded Case Circuit Breakers (Mccb)?

Moulded Case Circuit Breakers(MCCB) are circuit breakers designed to prevent damage to electrical equipment and systems from surges. They are compatible with a wide range of input voltages.

Normally referred to as MCCB, these breakers have customisable trip settings and current ratings of up to 2,500 amps. They serve three purposes and are utilised with frequencies of 50 and 60 Hz:

  • They protect against electrical hazards by instantly cutting off high-current flows caused by line faults or short circuits.
  • They shield against the current above and above the rated value for an extended period in the case of an overload.

What Is A Miniature Circuit Breaker (Mcb)?

Miniature circuit breakers, or MCBs, are moulded, insulating materials enclosed by electromagnetic devices. When the current flowing through the MCB exceeds its set value, the MCB automatically opens the circuit to which it is connected. It can be manually turned ON and OFF like a regular switch.

  • The circuit breaker’s breaking capacity, or its greatest current, can stop before being destroyed or releasing an arc. This must be commensurate with the potential magnitude of surges in the area. Kiloamperes (kA) are the standard international unit of measurement for breaking capabilities, equal to one thousand amperes.
  • The quantity of tripped switches in the MCB case. Single, double, triple, neutral, and four poles are all viable alternatives. Triple or three-pole types are prevalent; in the event of a breakdown on any of the circuits, the power to all them is cut off at once.

What Are HRC Fuses?

Many High Rupturing Capacity (HRC) Fuses are available, each with unique physical and electrical characteristics. The various hrc fuses serve to safeguard circuits in multiple contexts.

An HRC fuse’s primary function is to safely interrupt an over-current in an electrical circuit, which may be significantly larger than the circuit’s usual operating current.

The internal fuse element is less important in determining the fuse’s opening speed and typical current handling capability than the materials and design of an HRC fuse are. When an hrc fuse blows, it needs to be changed immediately.

  • An exterior fuse body is made from a material that can withstand high temperatures, like ceramic or fibreglass.
  • To dissipate the excess heat and energy of over-current, fine silica sand or quartz is typically packed into the cavity inside the fuse body.


To ensure effective protection, sites with high-power equipment must choose the right mccb for the right application. The size of the overcurrent determines the time of operation for MCBs.

This means they act when an overload lasts long enough to endanger the circuit they are intended to safeguard—Short-circuit protection HRC fuse

For a predetermined amount of time, it carries a high short-circuit current. A transformer was protected from outside interference with HRC fuses. When it comes to electronic items, IndoAsian is your safest option.
